Builder beware! 2022 updates to the National Construction Code (NCC) require more stringent condensation management to decrease health risks and building damage caused by high moisture levels.
Alpine Ventilation, innovative and reliable supply partner to Dahlsens, offer a range of advanced solutions that look good, protect your build and offer efficiencies in the building process while meeting NCC 2022 provisions. Here is a selection of leading solutions along with applicable NCC updates you need to be aware of.
Changes to roof and wall cavity ventilation
NCC 2022 condensation management targets roof and wall cavity ventilation under 10.8.2 (Exhaust Systems) and 10.8.3 (Ventilation of Roof Spaces) provisions. The higher levels of ventilation required include mechanical ventilation systems and passive or natural ventilation solutions.
10.8.2 Exhaust System Overview
- Exhaust fans, rangehood and vented clothes dryers must be vented externally to the outside air.
- Exhaust fans must have a minimum flow rate of 40L/sec.
- Some exhaust fans must be connected to the light switch with a run-on timer
Solutions

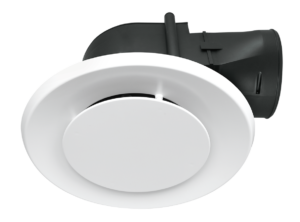

Header box fan
- Powerful 375 m³/h airflow, ideal for rooms up to 40m³
- Quiet operation adjustable timer (3-30 minutes) choice
- Compliant with AS/NZS standards and SAA certified
- Meets NCC 2022 10.8.2 (1) flow rate requirements

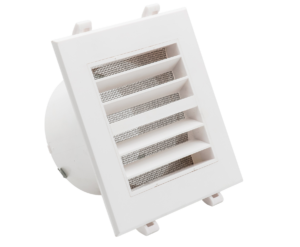

Snap-In Eave Vent
- Facilitates air expulsion for rangehoods and exhaust fans
- Snaps into place for easy installation
- Made with UV-stabilised ABS and removable 2mm aperture aluminium mesh
- Compliant with AS3959 for bushfire zones up to BAL 29
- Available in 150mm, 200mm, and 250mm sizes

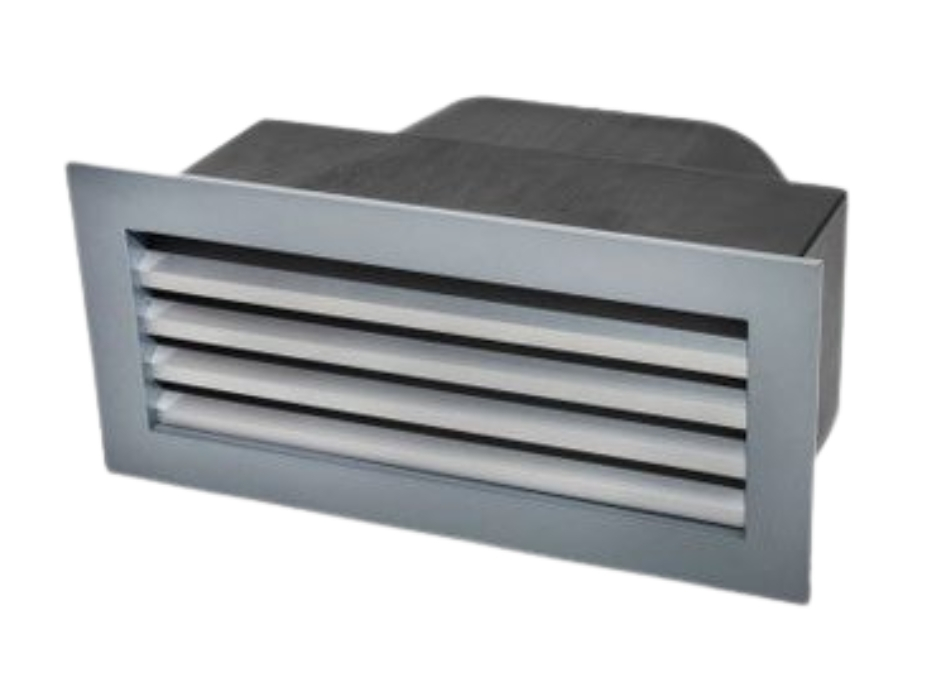

Brick Vent 150mm
- To vent rangehoods, exhaust fans and for general ventilation
- Aluminium face, galvanised steel support frame, ABS adaptor, and aluminium mesh to protect against insects and rodents
- Adaptors available for 125mm, 150mm and 200mm fans.
- BAL 40 compliant
10.8.3 Ventilation of the Roof Space Overview
- Some homes in certain climate areas require additional venting at the eave.
- Homes requiring venting at the eave with a pitch of less than 10 degrees also require additional roof venting.
Solutions

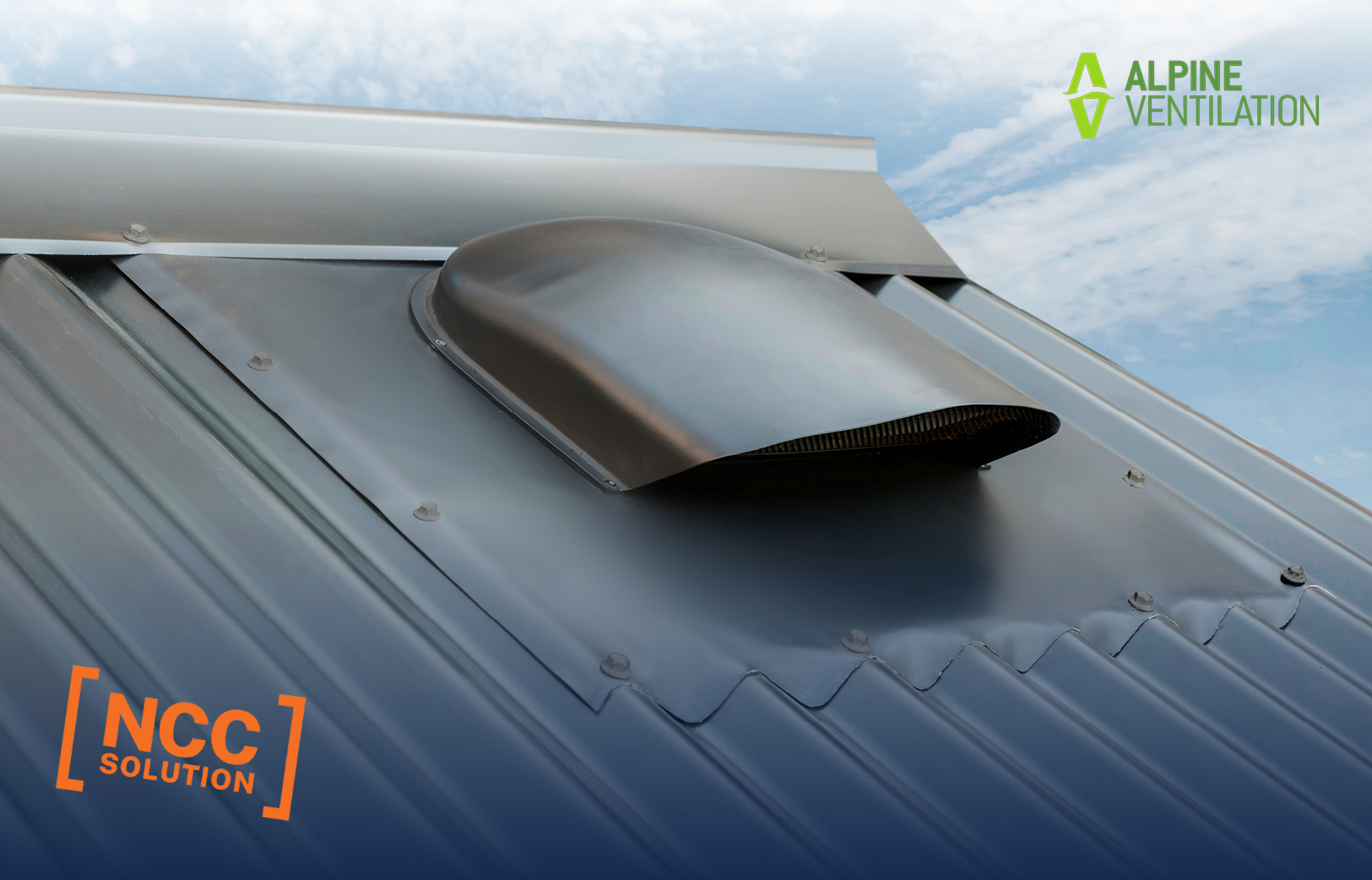

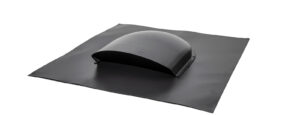

Low Profile Roof Vent
- Unobtrusive aluminium base with stainless steel dome
- Designed to fit seamlessly under solar panels
- Meets NCC 10.8.2 and 10.8.3 provisions and BAL 40

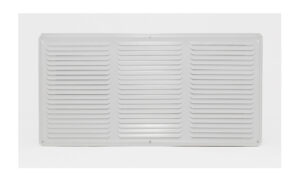

Metal Eave Vent 400x200mm
- Powder-coated steel vents for roof space ventilation
- Compliant with AS3959-209 for fire ratings up to BAL 40
- Open area of approximately 21,000 mm²
- Helps cool roof spaces in summer and prevent dampness and mould in winter
Eave and Fascia Vent
- Contemporary design in durable powder-coated aluminium–ideal for coastal areas
- To vent roof space ventilation. Can also be used in the fascia
- Compliant with AS3959-209 for fire ratings up to BAL 40
- Open area of approximately 26,250 mm²
- Helps cool roof spaces in summer and prevent dampness and mould in winter
Watch Angelo from Alpine Ventilation at a Dahlsens NCC Solutions workshop. He tells us about key NCC 2022 ventilation changes and the products you need to meet code.
Download these guides to learn more about the NCC 2022 condensation management provisions and product solutions by Alpine Ventilation.
Find out more
Contact your Dahlsens account manager or local store for more information or a quote regarding our range from Alpine Ventilation and other NCC 2022 product solutions.
